Thermo Bypass Valve - Installation

INSTALLATION

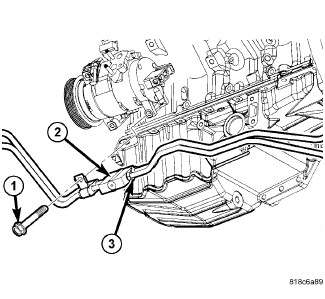

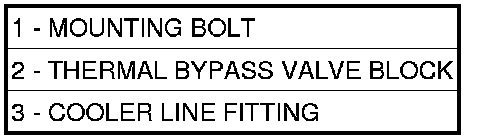

1. Position thermal bypass valve. Install mounting bolt. Tighten mounting bolt to: 2.7L/5.7L/6.1L engine 50 Nm (37 ft. lbs.), 3.0L/3.5L engine 26 Nm (19 ft.lbs.).
2. Install rear transmission cooler lines to thermal bypass valve. Tighten fittings to 20 Nm (18 ft. lbs.).
3. Install front transmission cooler lines to thermal bypass valve. Tighten fittings to 20 Nm (18 ft. lbs.).
