Rear Wheel Drive

REAR WHEEL DRIVE

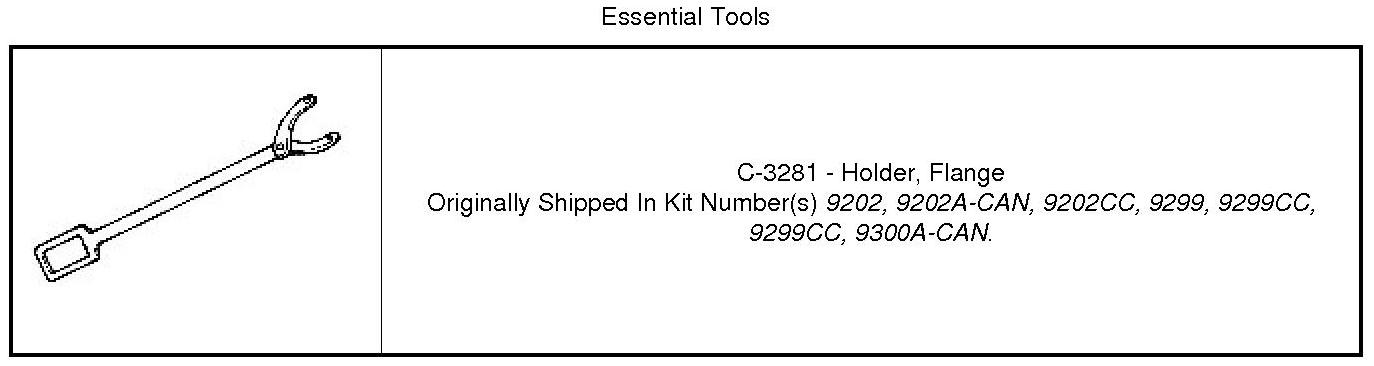

Special Tools:










1. Remove the propeller shaft Propeller Shaft - Removal. Move propeller shaft to the right and tie up.
2. Using a suitable punch, remove the staking from the nut.
3. Remove the propeller shaft flange nut about using a 34 mm 12 point socket (3) and (C-3281)(2) to hold the flange (1).
4. Remove the flange (1), and flange dust seal (2).
5. Remove the output shaft seal (3) with suitable screw and slide hammer.
