Transmission Oil Pump - Installation

INSTALLATION

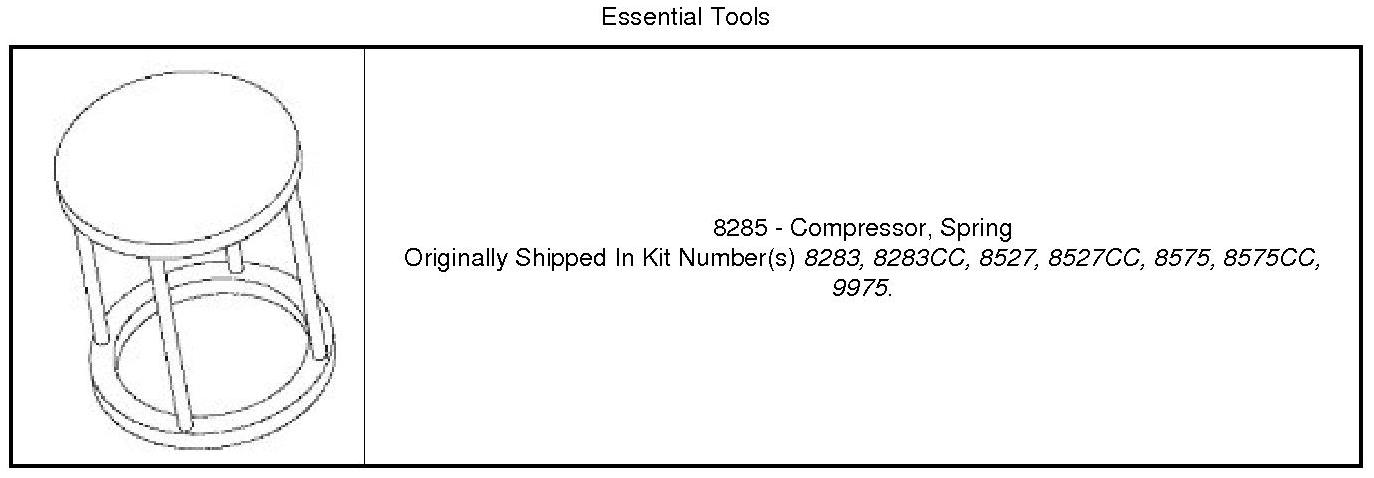

Special Tools:

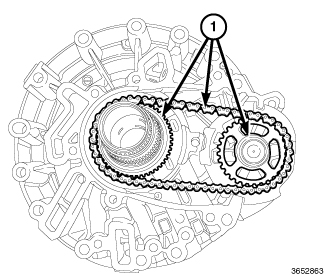

1. Install the drive sprocket, chain and pump body (1) as an assembly into the oil pump housing.

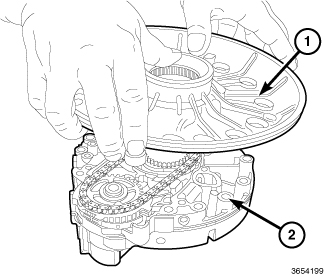

2. Set the pump cover (1) onto the oil pump housing (2), install the five bolts and tighten to 5 Nm (44 in. lbs.) plus 45°.





3. Install the piston plate and the piston retainer.





4. Position the oil pump housing assembly (4) in a suitable arbor press.
5. Using (8285) (1), press on the fingers of the piston retainer and install the two halves of the retaining ring (2).





6. Install the hub (3).
7. Install the clutches and spacers (4).
8. Install the snap ring (2).
9. Install the outer ring (1) (inside B-piston).
10. Install the B-piston.





11. Install the 13 new oil pump cover retaining bolts (2) and tighten the oil pump cover as follows:
a. In order to seat the oil pump cover properly, pre tighten bolts one, seven and nine to 6 Nm (53 in. lb.).
b. Working in a clockwise pattern, beginning with number one, tighten to 10 Nm (89 in. lb.).
c. Working in a clockwise pattern, beginning with number one, tighten an additional 90°.





12. Install the new input shaft O-ring (1).
13. Install the valve body Valve Body - Installation.
14. Install the transmission Installation.
