Rear Suspension Knuckle - Removal

NON SRT

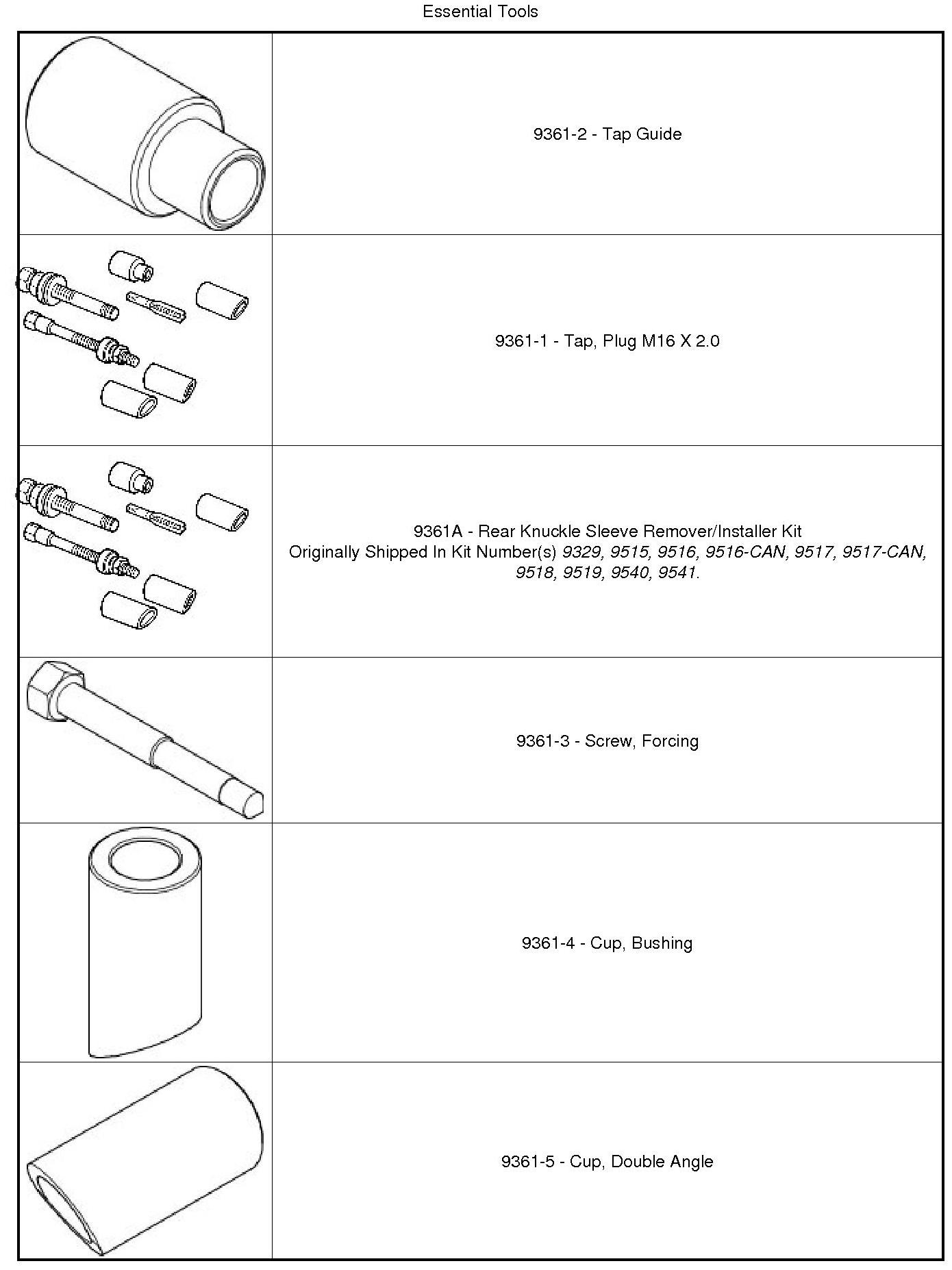

Special Tools:














1. Raise and support vehicle Maintenance.

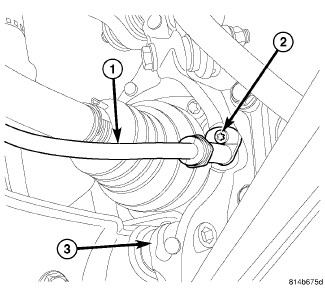

2. Unclip wheel speed sensor cable at rear brake rotor shield (1).
3. Remove screw (2) fastening sensor head (3) to rear knuckle.
4. Remove wheel speed sensor head from knuckle.
5. Access and remove rear hub and bearing . Rear Hub And Bearing - Removal
6. Remove parking brake shoes Removal.










7. If not removed, remove parking brake shoe actuator lever (1) from end of cable (2).
8. Remove shoe support from knuckle.





9. Remove parking brake cable screw (2) at knuckle (3) and pull cable (1) out of knuckle.
10. Position under-hoist utility jack or jack stand under spring link. Raise jack head to contact spring link at shock mount secure in place.





11. Remove spring link-to-knuckle nut and bolt (2).






CAUTION: It important to use (9361-2) (2) , when tapping sleeve in knuckle to help keep (9361-1) (1), straight during use or damage to Tap may occur.

12. Place (9361-2) (2) against sleeve (3) in knuckle to keep (9361-1) (1) straight. Using Tap with an appropriate handle, cut threads approximately halfway through bushing (or about six complete threads). It is important to back tap out, clean out burrs and lubricate Tap often during process.






NOTE: Prior to using (9361A), lubricate Bolt (1) threads to provide ease of use and promote tool longevity.

13. Assemble (9361A) as shown.
- (1) (9361-3)
- (2) Nut
- (3) Spherical Washer
- (4) Thrust Bearing
- (5) (9361-4) (RWD)
- (5) (9361-5) (AWD - Left Side)
- (5) (9361-6) (AWD - Right Side)

NOTE: When installing thrust bearing on Remover, be sure to place hardened side against nut. Place bearing outer cage against stationary component.

NOTE: It is important to use appropriate Sleeve on Remover to provide proper Tool-to-Knuckle contact. RWD sleeve can be used on either side while AWD knuckles require specific left or right side Sleeves.






14. Thread (9361-3)(1) into tapped knuckle sleeve.
15. Rotate Nut down, matching Sleeve angled end with angled face of knuckle.
16. Continue to rotate Nut until knuckle sleeve is removed from knuckle. Discard knuckle sleeve; replace it with new upon installation.





17. Remove bolt and nut fastening compression link (5) to knuckle (4).
18. Remove bolt fastening toe link (3) to knuckle (4).
19. Remove nut and bolt fastening stabilizer link to knuckle (4).
20. Remove nut and bolt fastening tension link (6) to knuckle (4).
21. Remove nut and bolt fastening camber link (1) to knuckle (4).
22. Remove knuckle (4).
23. Remove hub mounting bolts from knuckle.
