Inner Tie Rod

INNER TIE ROD






NOTE: The travel restrictor (2) has a beveled lip (1) on one end of its inside diameter to keep the restrictor from being install too far onto the rack gear. Install the restrictor with the beveled lip side outward (away from gear) to avoid mis-installation and restrictor damage.

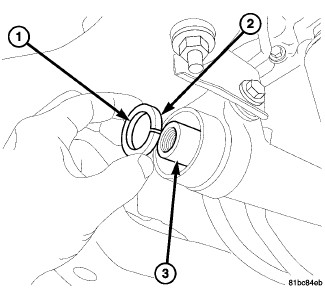

1. Install travel restrictor (2), beveled lip (1) side outward, on end of rack gear (3). Once installed, restrictor will be flush with end of rack gear.
2. Apply Mopar(R) Lock AND Seal Adhesive or equivalent medium thread locker adhesive to inboard end threads of inner tie rod.

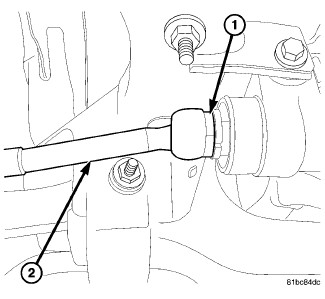

3. Install inner tie rod (2) onto gear using appropriate inner tie rod installer tool or crows foot wrench on hex (1). Tighten inner tie rod to 88 Nm. (65 ft. lbs.).
4. Loosely place new clamp over large end of bellows.





5. Apply a small amount of Mopar(R) Lubriplate or equivalent uniformly to groove (1) in inner tie rod shaft. This allows for toe adjustment without twisting bellows.
6. Slide new bellows with clamp over end of inner tie rod and onto gear body.
7. Push small end of bellows (2) until ridge inside bellow engages groove (1) machined into inner tie rod.





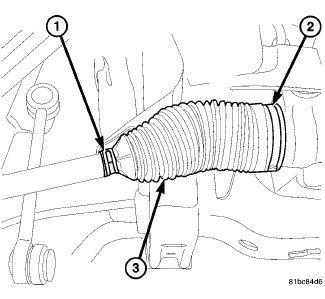

8. Install new clamp (1) over small end of bellows (3).

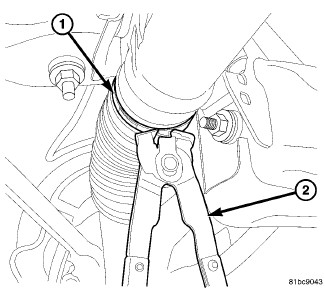

9. Using crimping pliers (2), crimp bellows clamp (1) at gear body.





10. If equipped with All-Wheel-Drive and heat shield was removed, install heat shield (3) above inner tie rod bellows (2). Tighten screws to 10 Nm (89 in. lbs.).
11. Thread tie rod jam nut onto inner tie rod far enough to install outer tie rod.
12. Install outer tie rod Tie Rod End - Installation.
