Tilt Motor - Removal

REMOVAL






CAUTION: Steering column module is centered to the vehicles steering system. Failure to keep the system and steering column module centered and locked/inhibited from rotating can result in steering column module damage. Service and Repair .

1. Remove the steering column from the vehicle Steering Column - Removal

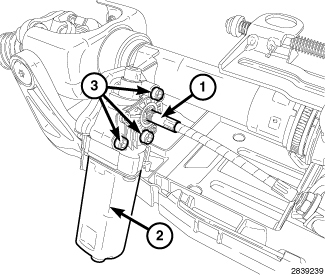

2. Place steering column on a flat bench, with the tilt motor (2) over the edge.
3. Remove the three bolts (3) that hold the tilt motor to the steering column assembly.
4. Pull the tilt motor (2) away from the steering column assembly and pull off of the flex drive (1).
