Seat Belt Turning Loop Adjuster - Installation

INSTALLATION

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Chrysler Mopar(R) Parts Catalog.

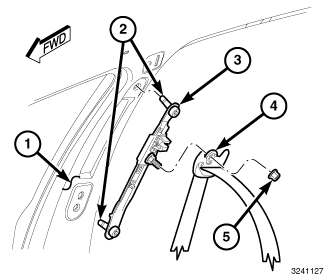

1. Position the seat belt turning loop height adjuster (3) to the inside of the upper inner B-pillar (1).
2. Install and tighten the two screws (2) that secure the adjuster to the B-pillar. Tighten the screws to 45 Nm (33 ft. lbs.).
3. Position the seat belt turning loop (4) onto the stud of the height adjuster on the B-pillar. Be certain that the seat belt webbing between the retractor and the turning loop is not twisted.
4. Install and tighten the nut (5) that secures the turning loop to the height adjuster. Tighten the nut to 45 Nm (33 ft. lbs.).
5. Reinstall the trim onto the inside of the B-pillar. B-Pillar Trim Panel - Installation.
