Side Curtain Air Bag - Description

DESCRIPTION

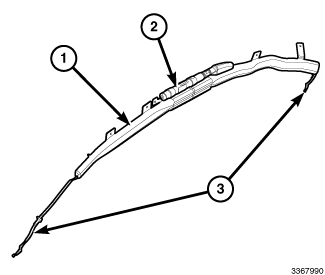

Side AirBag Inflatable Curtains (SABIC) (1) are standard factory-installed equipment for this vehicle. These airbags are passive, inflatable, Supplemental Restraint System (SRS) components. The SABIC system is designed to reduce injuries to the vehicle occupants in the event of a side impact collision or a vehicle rollover incident. Each SABIC cushion provides full coverage of the side glass on the same side of the vehicle as the monitored impact.

Each vehicle is equipped with two individually controlled SABIC units. These SABIC units are concealed and mounted above the headliner where they are each secured to one of the roof side rails. Each folded airbag cushion is contained within a fabric wrap and extruded plastic channels that extend along the roof rail from the A-pillar at the front of the vehicle to the C-pillar at the rear of the vehicle.

A long tether (3) extends down the A-pillar from the front of the SABIC cushion, while a shorter tether extends back to over the C-pillar. The end of each tether is secured to a slot in the sheet metal with a metal T-hook, while an additional plastic push-in fastener secures the T-hook within the slot in the sheet metal of the pillar. A molded airbag support bracket is snapped into the roof rail above the C-pillar.

The hybrid-type inflator (2) for each SABIC is secured to the roof rail above the B-pillar and the front door opening, and is connected to the airbag cushion by a long tubular manifold. The inflator bracket and the extruded cushion channel are secured with both plastic push-in fasteners and a snap-in fastener to the roof rail. The inflator is initially hung from the roof rail by the snap-in fastener, then the push-in fasteners secure the body of the airbag cushion to the roof rail and the support bracket. Finally, the entire assembly is secured with five screws to the roof rail and the airbag support bracket.

The airbag inflator is connected to the vehicle electrical system through a dedicated take out and connector of the body wire harness near the top of the B-pillar. The body wire harness connects the SABIC unit to the Occupant Restraint Controller (ORC).

The SABIC units cannot be adjusted or repaired and must be replaced if deployed, ineffective, or in any way damaged. Once a SABIC has been deployed, the complete SABIC unit, the headliner, the upper A, B, and C-pillar trim as well as all other visibly damaged components must be replaced.
