Side Marker Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.

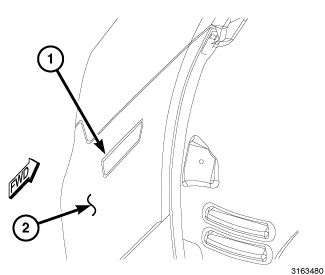

2. Using a trim stick or another suitable wide flat-bladed tool, carefully pry the forward edge of the rear side marker lamp lens and housing unit (1) away from the mounting hole in the rear fascia (2) far enough to disengage the integral snap clip on the back of the lamp from the fascia.
3. Pull the side marker lamp out from the rear fascia far enough to access the bulb socket on the back of the lamp housing.
4. Firmly grasp the bulb socket on the back of the lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the socket and bulb straight out from the keyed opening in the housing.
6. Remove the marker lamp from the fascia.
