Fog Lamp - Removal

LAMP





1. Disconnect and isolate the battery negative cable.
2. Raise and support the vehicle.
3. Remove the front belly pan from the underbody. Belly Pan - Removal.

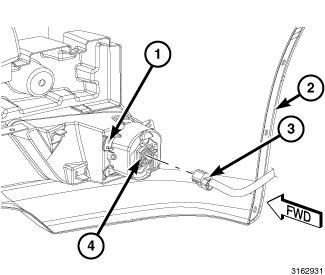

4. Reach behind the front fascia to access and disconnect the headlamp and dash wire harness connector (3) from the front fog lamp bulb (4) connector receptacle.
5. Remove the three screws (1) that secure the fog lamp mounting bracket to the back of the fog lamp seat in the lower front fascia (2).
6. Disengage the three latch features (3) of the fog lamp bracket from the opening on the back of the seat and push the fog lamp (4) forward far enough so the latch features are clear of the opening.
7. Remove the fog lamp from the vehicle.
