Fog Lamp Bulb - Removal

BULB

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.





1. Disconnect and isolate the battery negative cable.
2. Raise and support the vehicle.
3. Remove the front belly pan from the underbody. Belly Pan - Removal.
4. Reach behind the front fascia to access and disconnect the Front End Module (FEM) wire harness connector from the front fog lamp bulb connector receptacle.

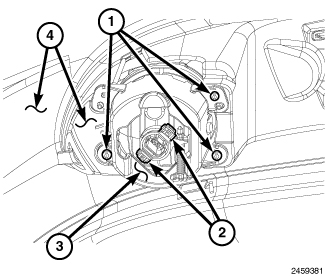

5. Firmly grasp the bulb by the two latch features (2) and squeeze them together to unlock the bulb from the back of the front fog lamp housing (3).
6. Pull the bulb straight out from the keyed opening in the housing.
