Right

REMOVAL





1. Disconnect and isolate the negative battery cable (1).





2. Lift the engine cover retaining grommets off the ball studs and remove the engine cover (1).





3. Disconnect the electrical connector (1) from the Inlet Air Temperature (IAT) sensor.
4. Loosen the clamp (2) at the throttle body.
5. Loosen the clamp (3) at the air cleaner housing.
6. Lift the air inlet hose assembly retaining grommet off the ball stud (4).
7. Remove the air inlet hose assembly (5).






NOTE: Left engine mount shown, right engine mount similar.

8. Remove the right engine mount isolator heat shield retaining nuts (3) and remove the heat shield (4).
9. Remove both left and right engine mount isolator to frame retaining bolts (2).

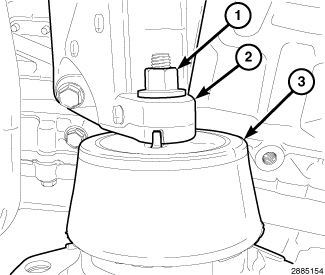

10. Remove the right engine mount isolator (3) upper retaining nut (1).





11. Raise and support the vehicle Maintenance.
12. Remove the belly pan retainers (1) and remove the belly pan.
13. Using a suitable screw jack, raise the engine to gain clearance for engine mount isolator removal.

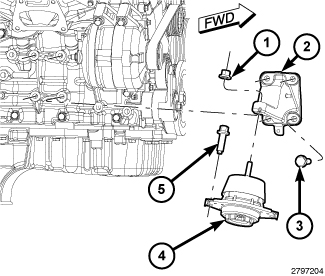

14. If required, disconnect the main wire harness from the Crankshaft Position (CKP) sensor (3).
15. If required, unfasten the main wire harness retainer (1) from the engine block and one main wire harness retainer (2) from the right engine mount bracket and position harness aside.





16. Remove the engine mount isolator (4) from the vehicle.
17. If required, remove the right engine mount bracket (2) four retaining bolts (3) and remove the right engine mount bracket.
