Brake Tube Junction Block - Removal

REMOVAL

NOTE: Before proceeding, Warning Brakes - Caution .





1. Disconnect and isolate battery negative cable (2) from battery post.
2. Using a brake pedal holding tool, depress brake pedal past its first inch of travel and hold it in this position. Holding pedal in this position will isolate master cylinder from hydraulic brake system and will not allow brake fluid to drain out of brake fluid reservoir while brake lines are open.

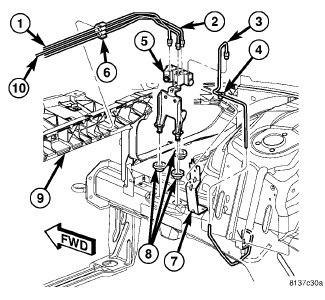

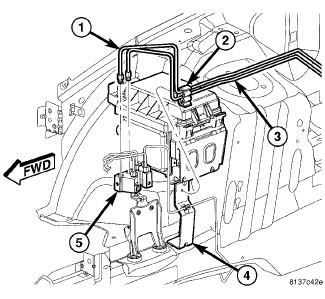

3. Remove brake tubes (1, 2, 3 and 10) at junction block (5).





4. Remove remaining brake tubes (1 and 3) at junction block (5).





5. Pull up on junction block (5) and remove from mounting grommets (8).
