Wind Deflector - Installation

INSTALLATION

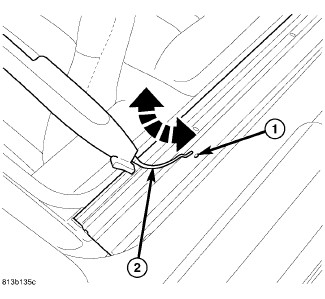

1. Position the deflector spring arms (2) into the holes of the frame (1).

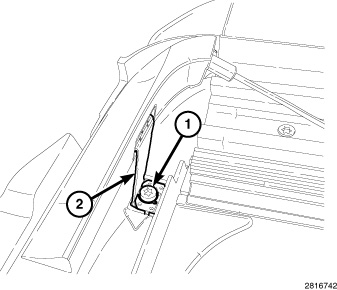

2. Rotate the deflector down, attach the straps (2) and install the strap screws (1) into the front beam until tight.
3. Verify sunroof operation and alignment.
