Sunroof Glass Guide - Installation

INSTALLATION

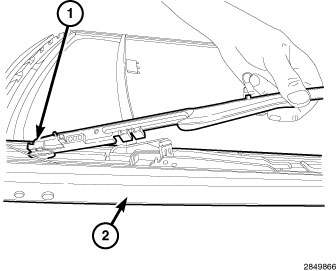

1. Insert the front foot (1) into the track assembly (2) and rotate inboard to engage.

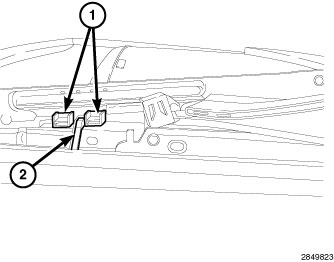

2. Align the opening between the glass guide bosses (1) with the guide carriage foot (2) and lower the glass guide to engage.





3. Push the glass guide (1) forward and engage into the driving wedge (2).

NOTE: The guide carriage assembly should move together with the glass guide. If the guide carriage assembly does not move with the glass guide, repeat the alignment procedure in step 2.

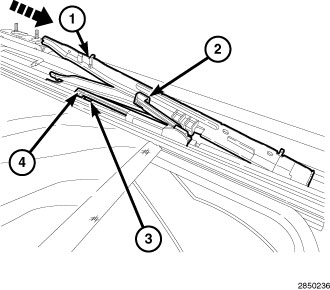

4. Continue pushing the guide carriage and glass guide forward until the locking lever (4) engages into the track assembly notch (3).

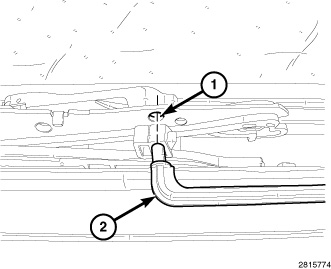

5. Install the drain channel arms (2) into the mechanism holes (1) one at a time.
6. If necessary, repeat steps for the opposite side.

CAUTION: Do not push the guide arms at the same time or you could break the guide mechanism. Do not use excessive force to install.

7. Re-connect the negative battery cable and turn the key to the accessory run position.
8. Cycle the mechanism through all of it's functions to verify proper operation.
9. Cycle the mechanism to the closed position.
10. Install the glass as necessary. Sunroof Glass - Installation
11. Adjust the sunroof glass to fit flush with the roof line Adjustments.
12. Verify proper operation of the power sunroof system.
