Sunroof Trim Lace - Removal
Sunroof Trim Lace - Removal
REMOVAL
1.

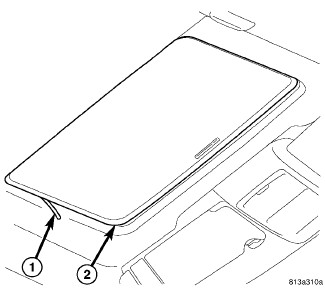

Remove trim lace (2) by holding one end of the trim lace at the butt joint and pulling horizontally into the opening until lace is completely loose from the
headliner
/sunroof joint.
