Sunroof Trim Lace - Installation

INSTALLATION

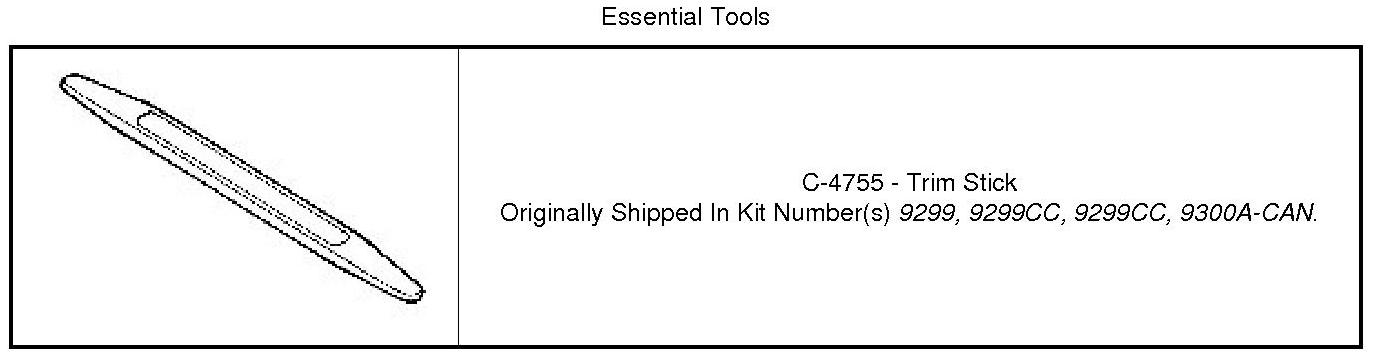

Special Tools:










1. Place butt joint of trim lace into position starting at the drivers side middle of the opening at the butt joint notch in the u-frame.
2. Push lace into position.
3. Ensure that the corner radii is fully engage.
4. Once the trim lace is attached to sunroof module using a trim stick or equivalent, begin tucking the headliner under the lip on the trim lace working all the way around the opening. When installing a new trim lace, begin tucking the headliner under the lip as the tear cord (1) is removed working all the way around the opening.
