Sunroof Mechanism Cover - Removal

REMOVAL





1. Move the glass panel to the full closed position.
2. Slide sunshade rearward to the open position.
3. Separate the mechanism covers (1) from the tabs on the glass panel by pulling the top edge inboard from both sides of the cover.





4. Hold both mechanism covers down and open the sunroof fully.

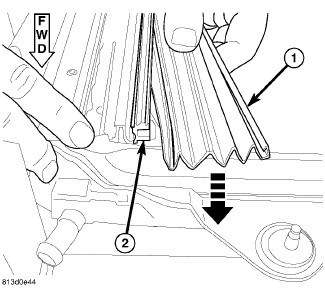

5. Slide the mechanism covers (1) out the front of the guide in the frame (2).
