Sunroof Mechanism Cover - Installation

INSTALLATION

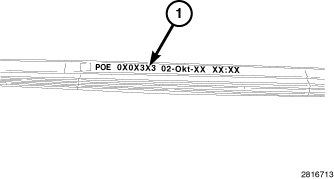

1. Locate the top of mechanism cover indicated by the printed text (1).

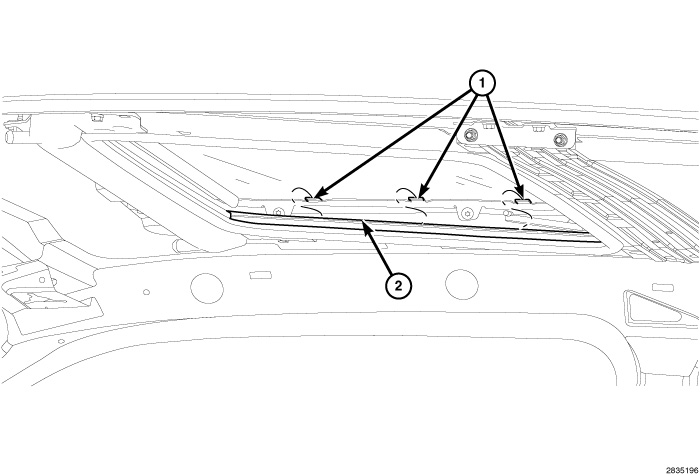

2. With the sunroof in the open position, snap the mechanism cover into the lower guide channel (2).
3. Hold down each cover and close the sunroof.
4. Snap the upper portion of the cover into the retaining clips (1) on the glass panel between the locating features.
