Sunroof Drain Channel - Removal

REMOVAL






NOTE: Left side shown, right side typical.

1. Remove glass panel.Sunroof Glass - Removal

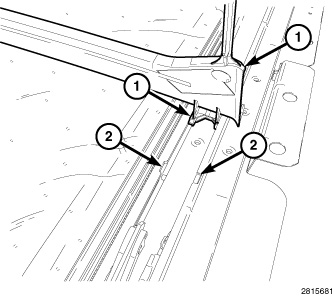

2. Using pliers, disengage the drain channel arm (1) from the guide mechanisms (2) one at a time by pushing the drain channel arm retaining tab through the retention hole located in the guide mechanism. Do not use excessive force to remove.

CAUTION: Disengage the drain channel arms one at a time. Do not disengage both sides at the same time.

CAUTION: Do not pull or pry the channel arms. Doing so will result in breaking the channel arms. Only disengage the channel arms as shown.






3. Carefully slide the drain channel (1) forward to the notches (2) in the track assy. Pull up on one side to disengage, repeat on the opposite side and remove the drain channel.
