Sunroof - Installation

INSTALLATION






WARNING: The excessive force limitation (efl) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury. Programming and Relearning for the appropriate procedure.

1. Verify that glass panel is loose and slightly retracted.

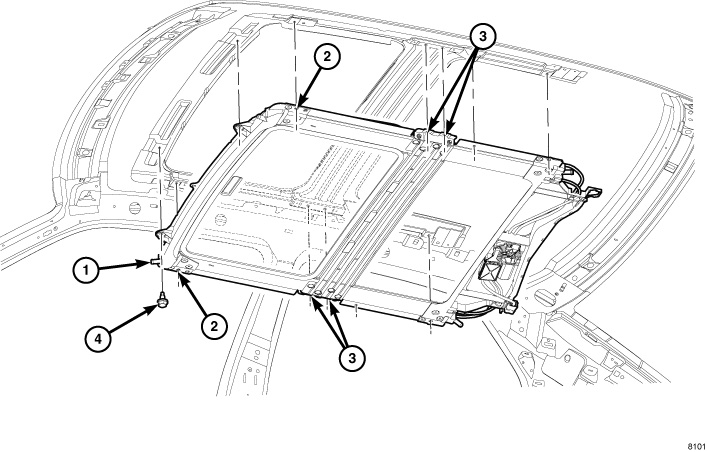

2. Raise sunroof module assembly (1) and guide it carefully into position.

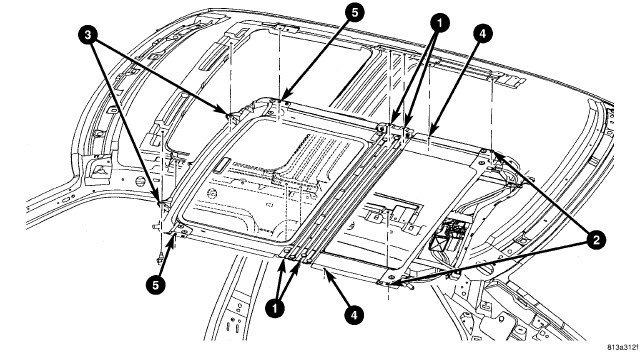

3. While supporting the sunroof assembly start the 12 attaching screws and tighten the attaching screws to 9 Nm (80 in. lbs.) using the sequence shown.

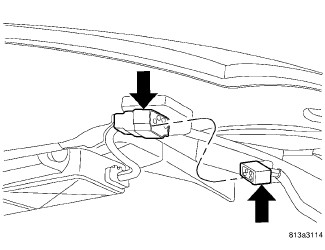

4. Connect the electrical connector.

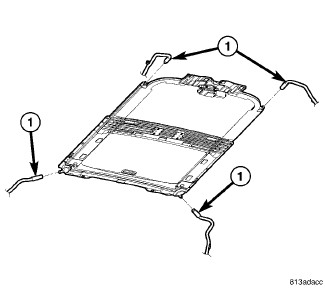

5. Connect the drain tubes to the sunroof (1).
6. Adjust the sunroof glass. Adjustments
7. Connect battery negative cable.
8. Install the vehicle headliner, Headliner - Installation.
9. Perform the sunroof position calibration, Programming and Relearning.
10. Perform the Excessive Force Limitation (EFL) calibration Programming and Relearning.
11. Verify proper operation of the power sunroof system.
