Door Lock Cylinder - Removal

REMOVAL






NOTE: A door lock cylinder is used only on the driver side front door exterior handle.

1. Remove the carrier plate, Front Door Carrier Plate - Removal.
2. Remove the handle from the outside of the driver side front door, Front Exterior Handle - Removal.

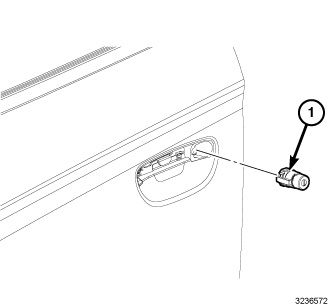

3. Using hand pressure, push on the face of the lock cylinder (1) until it pops out of the cavity in the back of the door handle.
