Heated/Cooled Cupholder - Installation

INSTALLATION

NOTE: Take the proper precautions to protect the center floor console from cosmetic damage.

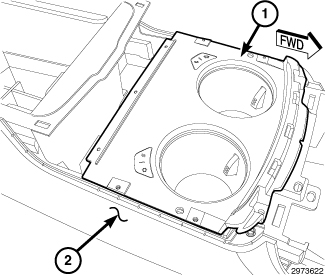

1. Position the heated/cooled cupholder assembly (1) to the center floor console and (2) connect the console wire harness (4) to the cupholder connector (3).





2. Engage the retaining clips that secure the heated/cooled cupholder assembly (1) to the center floor console (2).





3. Install the six screws (1) that secure the shade door (2) to the center floor console (3). Tighten the screws to 2 Nm (17 in. lbs.).

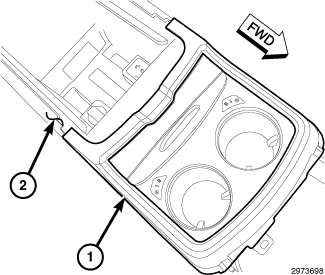

4. Position the center console bezel (1) to the center floor console (2) and engage the retaining clips. Make sure the retaining clips are fully engaged.
5. Install the shifter bezel to the center floor console Floor Console - Installation.
6. Reconnect the negative battery cable.
7. Verify proper heated/cooled cupholder operation.
