Underbody Shield - Removal

REMOVAL

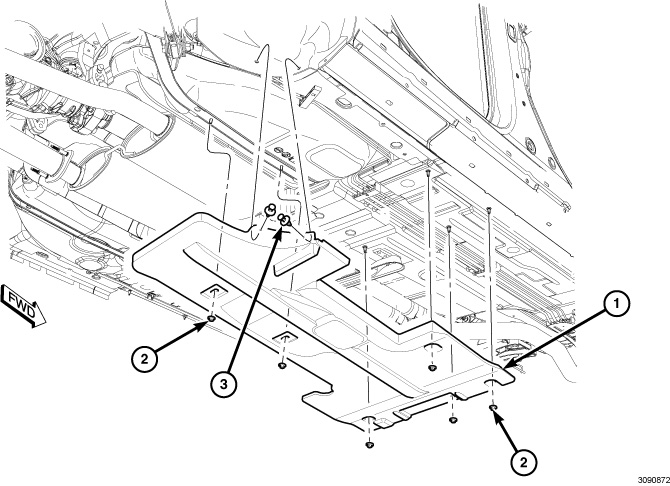

NOTE: Right side shown, left side typical.

1. Raise and support the vehicle.
2. Remove the two fasteners (3) that secure the underbody shield (1) to the rear wheelhouse splash shield.
3. Remove the six retaining nuts (2) that secure the underbody shield (1) to the vehicle underbody.
4. Remove the underbody shield from the vehicle.
