Rear Mount Shield - Installation

INSTALLATION

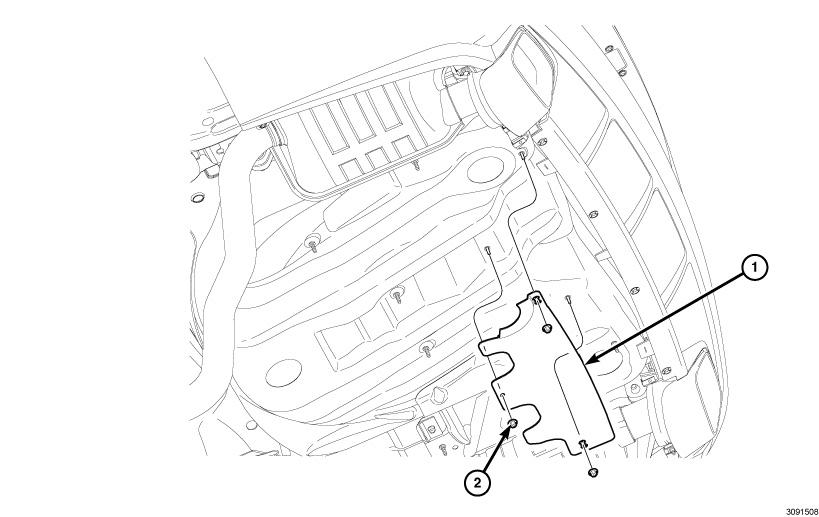

1. Position the rear underbody shield/panel (1) to the vehicle.
2. Install the three retaining nuts (2) that secure the underbody shield (1) to the vehicle underbody. Tighten the nuts securely.
3. Lower the vehicle.
