Premium 1





PREMIUM 1

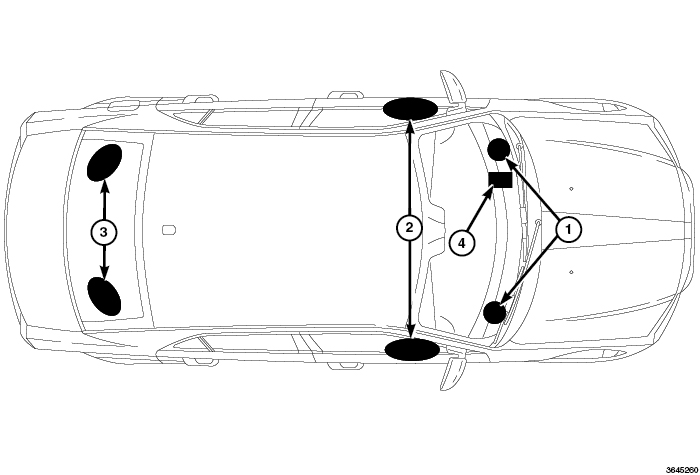

The premium 1 audio system includes six speakers and a amplifier.

- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters located in the instrument panel (1).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located in each front door (3).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side of the rear shelf (3).
- 8 channel 276 watts amplifier located under the instrument panel to the left of the steering column (4).
