P1DB7

P1DB7-TORQUE CONVERTER CLUTCH PERFORMANCE

For a complete wiring diagram Refer to the Wiring Information.

Theory of Operation

The purpose of the monitoring is to detect a failure in the Torque Converter Clutch (TCC) system. The TCC is used to bypass the torque converter. The TCC can be open, closed or in closed loop control mode where a specific clutch slip is controlled. The actual slip and the target slip are compared to detect a failure.

- When Monitored:
TCC closed or in closed loop control mode.

Pressure inside the TCC (calculated by a software model) must be greater than a calibrated threshold.

Engine torque must be lower than a calibrated threshold.

- Set Condition:
A failure is detected if the difference between the actual slip and target slip of the TCC is greater than a calibrated threshold for an amount of time.





Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. 8HP45 Pre-Diagnostic Troubleshooting Procedure

1. CHECK IF DTC IS CURRENT

NOTE: The Transmission Control Module stores under Environmental Data the transmission operating conditions when the DTC was set. Before clearing any DTCs, record all information pertaining to the DTC.

1. With the scan tool, CLEAR transmission DTCs.
2. Using the Environmental Data previously recorded, drive the vehicle and try to duplicate the condition in which the DTC set.

Does the DTC reset?

Yes

- Go To 2

No

- Go To 3

2. TRANSMISSION CONTROL MODULE ASSEMBLY (TCMA)

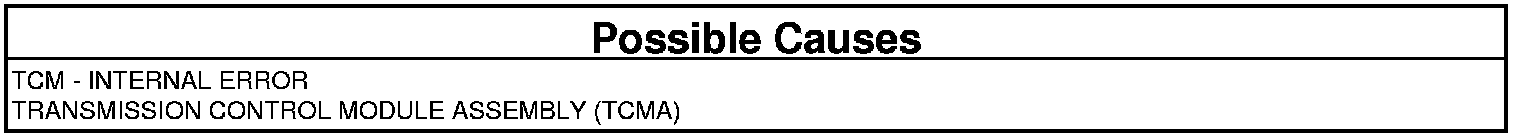

If there are no possible causes remaining, view repair.

Repair

- Using the schematics as a guide, check the TCMA terminals for corrosion, damage or terminal push out. Pay particular attention to power and ground circuits. Check Service Information Tune-ups or Service Bulletins for possible causes that may apply. If the DTC returns, replace and program the TCMA. Valve Body - Removal.
- Perform the TRANSMISSION VERIFICATION TEST. Verification Tests.

3. INTERMITTENT WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wiring and connectors while checking for any possible open or shorted circuits.
4. Check for any Service Information Tune-ups or Technical Service Bulletins that may apply.

Were any problems found?

Yes

- Repair as necessary.
- Perform the TRANSMISSION VERIFICATION TEST. Verification Tests.

No

- Test Complete.
