P1462

P1462-FUEL LEVEL OUTPUT CIRCUIT LOW

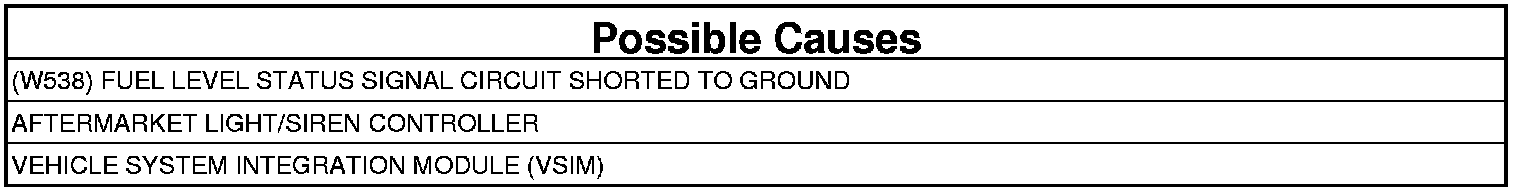

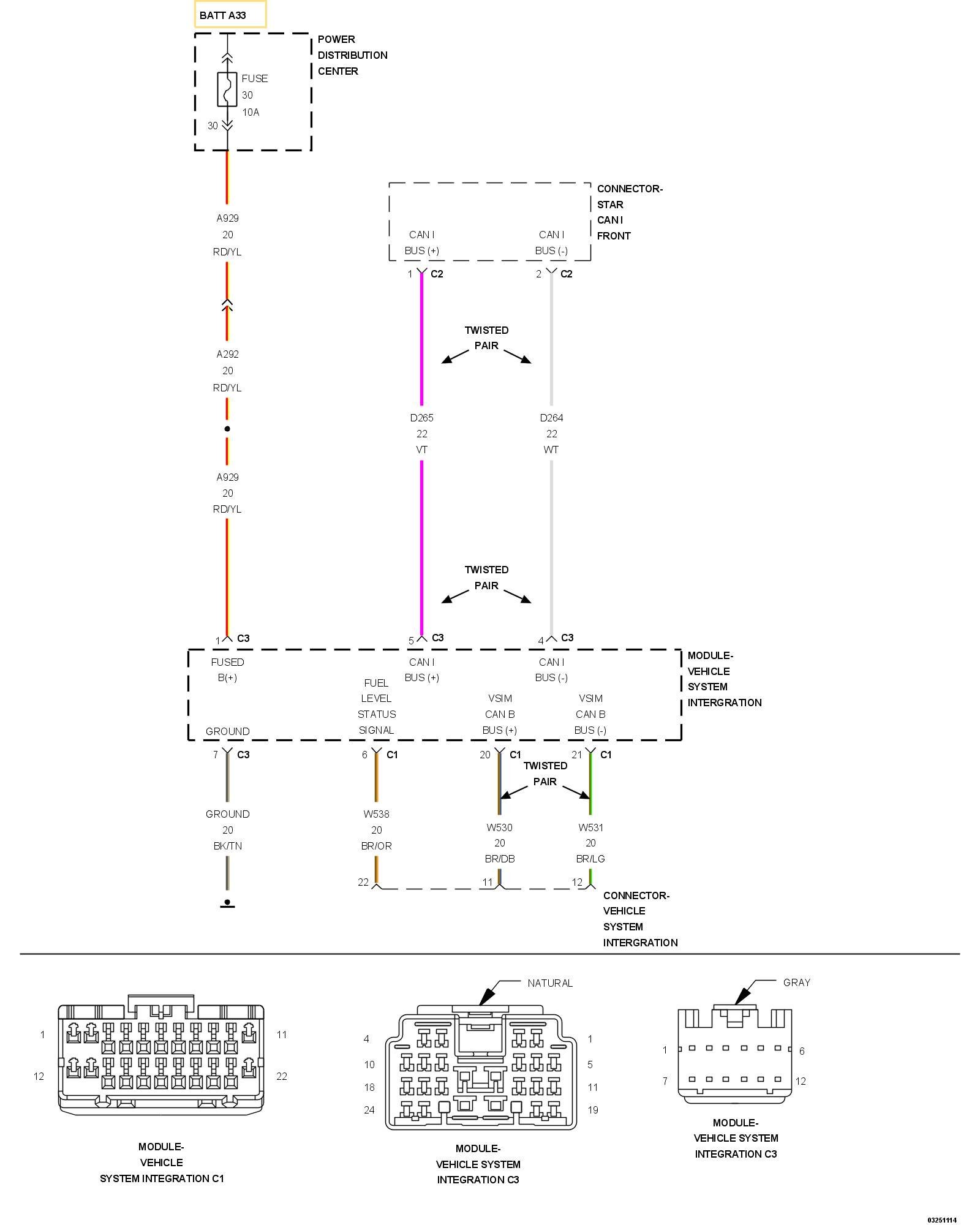

For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
With the ignition switch on.

- Set Condition:
The Vehicle System Integration Module (VSIM) has detected the Fuel Level Status Signal circuit below a calibrated value.





1. CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS
1. Using the scan tool, read all active DTCs from all modules.
2. Record all communication and low system voltage DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

- Go to and perform the appropriate diagnostic procedure.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 2

2. CHECK FOR ACTIVE DIAGNOSTIC TROUBLE CODE (DTC)
1. Using the scan tool, read the active DTCs.
2. Erase the DTCs.
3. Turn the ignition off, wait 10 seconds, then turn the ignition on.
4. Using the scan tool, read the active DTCs.

Does the scan tool display this DTC as active?

Yes

- Go To 3

No

- If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out or corroded terminals and repair any obvious problems.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

3. CHECK THE (W538) FUEL LEVEL STATUS SIGNAL CIRCUIT FOR A SHORT TO GROUND




1. Turn the ignition off.
2. Disconnect the VSIM C1 harness connector.

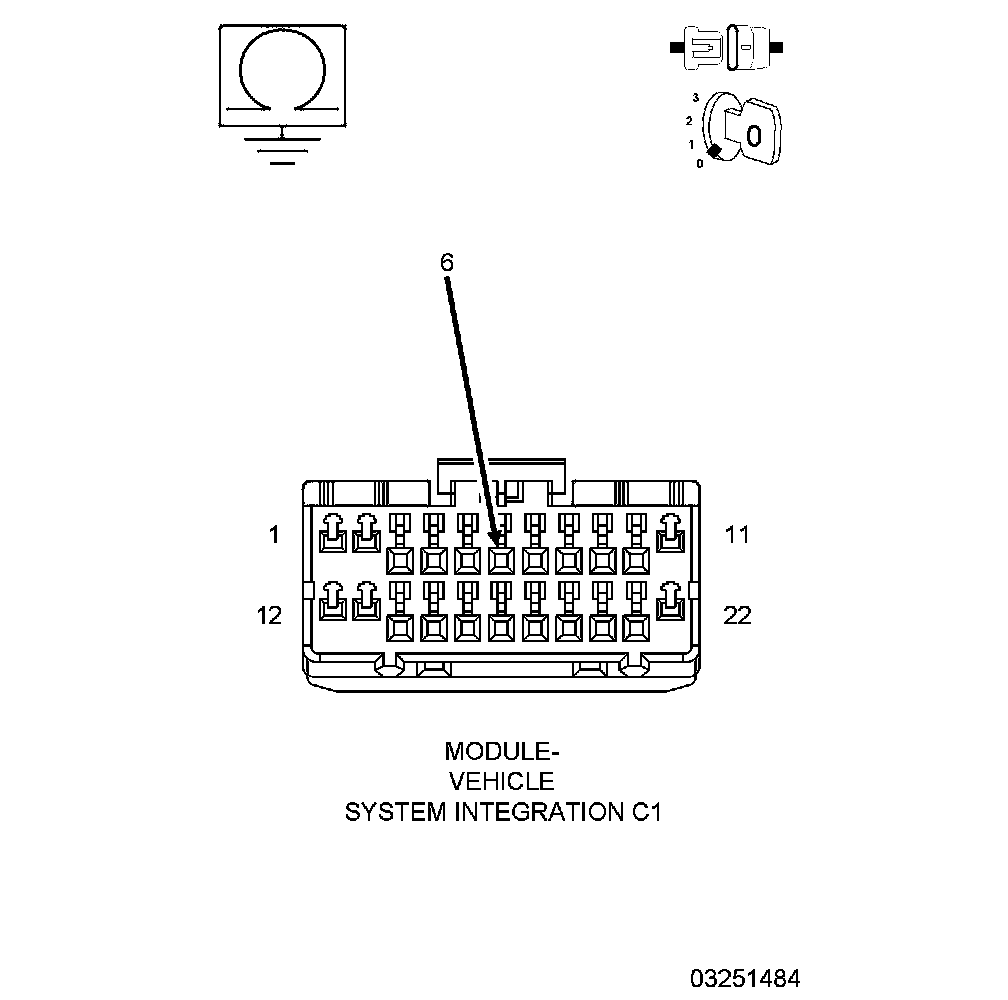

3. Measure the resistance of the (W538) Fuel Level Status Signal circuit between ground and the VSIM C1 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Go To 4

No

- Go To 5

4. ISOLATE THE SHORT TO GROUND IN THE (W538) CHECK THE FUEL LEVEL STATUS SIGNAL CIRCUIT




1. Turn the ignition off.
2. Disconnect the VSIM 24 way harness connector (aftermarket light/siren controller side).
3. Measure the resistance of the (W538) Fuel Level Status Signal circuit between ground and the VSIM C1 harness connector.

Is the resistance below 5.0 Ohms?

Yes

- Repair the (W538) Fuel Level Status Signal circuit for a short to ground.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Refer to electrical diagnostics for the aftermarket light/siren controller and repair or replace the aftermarket light/siren controller in accordance with the manufacturer's Service Information.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

5. CHECK THE VSIM
1. Turn the ignition off.
2. Disconnect all VSIM and aftermarket light/siren controller harness connectors.
3. Check for damaged or corroded pins, pinched wires or damaged connectors and repair any obvious problems.
4. Connect all VSIM and aftermarket light/siren controller harness connectors.
5. Turn the ignition on.
6. With the scan tool monitor active codes as you work through the following step.
7. Wiggle the wiring harness and connectors of the VSIM and aftermarket light/siren controller.
8. If only stored codes return continue the test until the problem area has been isolated and repair any obvious problems.

Is DTC P1462-FUEL LEVEL OUTPUT CIRCUIT LOW still displayed?

Yes

- Replace the VSIM.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Repair is complete. The problem may have been caused by a loose or corroded terminal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
