B1E6A-15

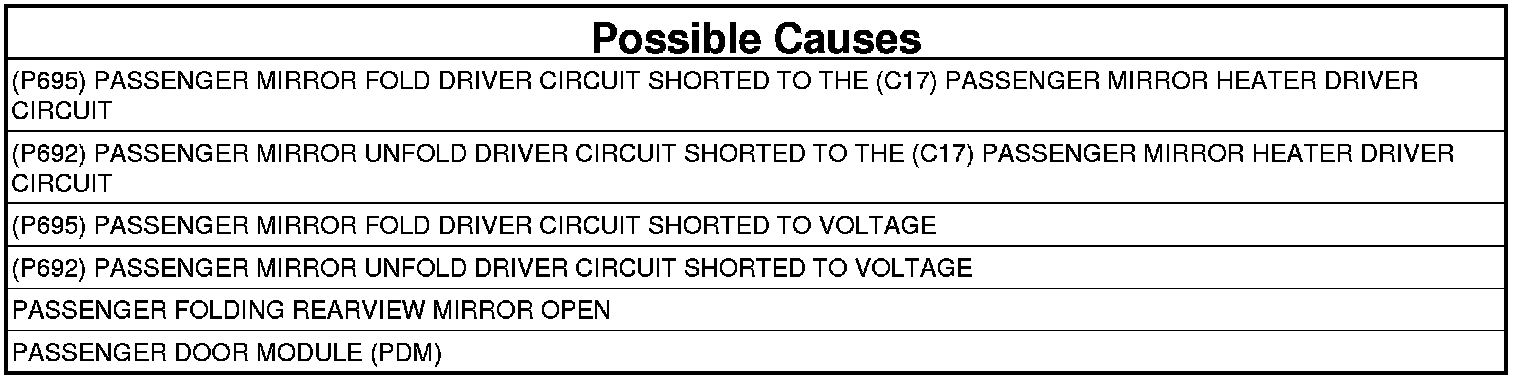

B1E6A-15-PASSENGER MIRROR FOLD CONTROL - CIRCUIT SHORT TO BATTERY OR OPEN





For a complete wiring diagram, refer to the Wiring Information.

- When Monitored:
Continuously.

- Set Condition:
When the Passenger Door Module (PDM) senses voltage on the (P695) Passenger Mirror Fold Driver circuit or the (P692) Passenger Mirror Unfold Driver circuit for more than 10 ms when no voltage should be present.





1. TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase the Diagnostic Trouble Codes (DTCs).
3. For vehicles equipped with heated mirrors, turn the rear defogger ON.
4. Operate the Mirror Fold switch several times.
5. With the scan tool, read the DTCs.

Does the scan tool display; B1E6A-15-PASSENGER MIRROR FOLD CONTROL - CIRCUIT SHORT TO BATTERY OR OPEN?

Yes, with Heated Mirrors

- Go To 2

Yes, without Heated Mirrors

- Go To 3

No

- The conditions that caused this code to set are not present at this time. Repeat the test with the mirror adjusted in several different positions. If the DTC is now active, Go To 2 (with heated mirrors) or3 (without heated mirrors). Otherwise, use the wiring diagram/schematic as a guide and inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

2. CHECK THE (P695) PASSENGER MIRROR FOLD DRIVER CIRCUIT AND THE (P692) PASSENGER MIRROR UNFOLD DRIVER CIRCUIT FOR A SHORT TO THE (C17) PASSENGER MIRROR HEATER DRIVER CIRCUIT




1. Turn the ignition off.
2. Disconnect the Passenger Outside Rearview Mirror (Component Side) connector from the PDM C2 harness connector.

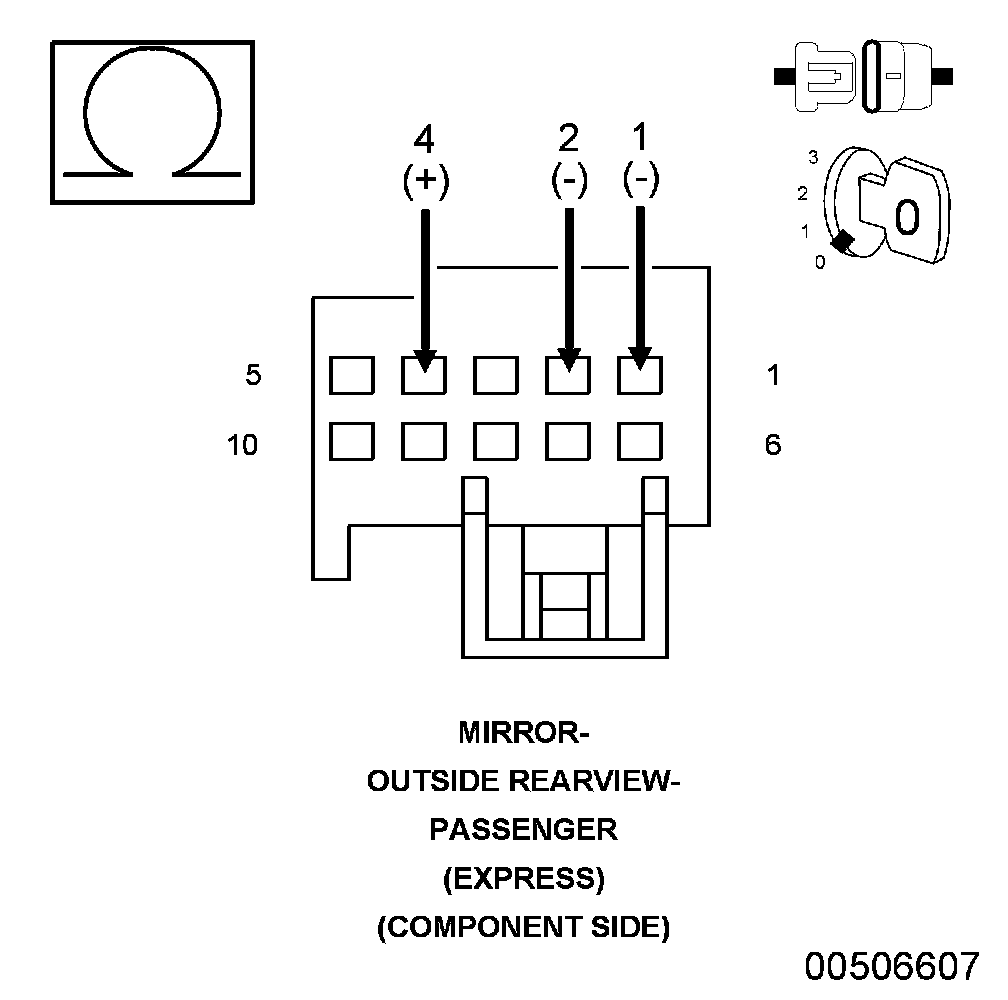

3. Measure the resistance between the (P695) Passenger Mirror Fold Driver circuit and the (C17) Passenger Mirror Heater Driver circuit at the Passenger Outside Rearview Mirror (Component Side) connector.
4. Measure the resistance between the (P692) Passenger Mirror Unfold Driver circuit and the (C17) Passenger Mirror Heater Driver circuit at the Passenger Outside Rearview Mirror (Component Side) connector.

Is the resistance below 10k Ohms for either measurement?

Yes

- Repair all circuits with a resistance below 10k Ohms for a short to the (C17) Passenger Mirror Heater Driver circuit. If the wiring harness and connector are okay, replace the Passenger Outside Rearview Mirror. Outside Rearview Mirror - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Go To 3

3. CHECK THE (P695) PASSENGER MIRROR FOLD DRIVER CIRCUIT AND THE (P692) PASSENGER MIRROR UNFOLD DRIVER CIRCUIT FOR AN OPEN




1. If not done previously, turn the ignition off.
2. If not done previously, disconnect the Passenger Outside Rearview Mirror (Component Side) connector from the PDM C2 harness connector.

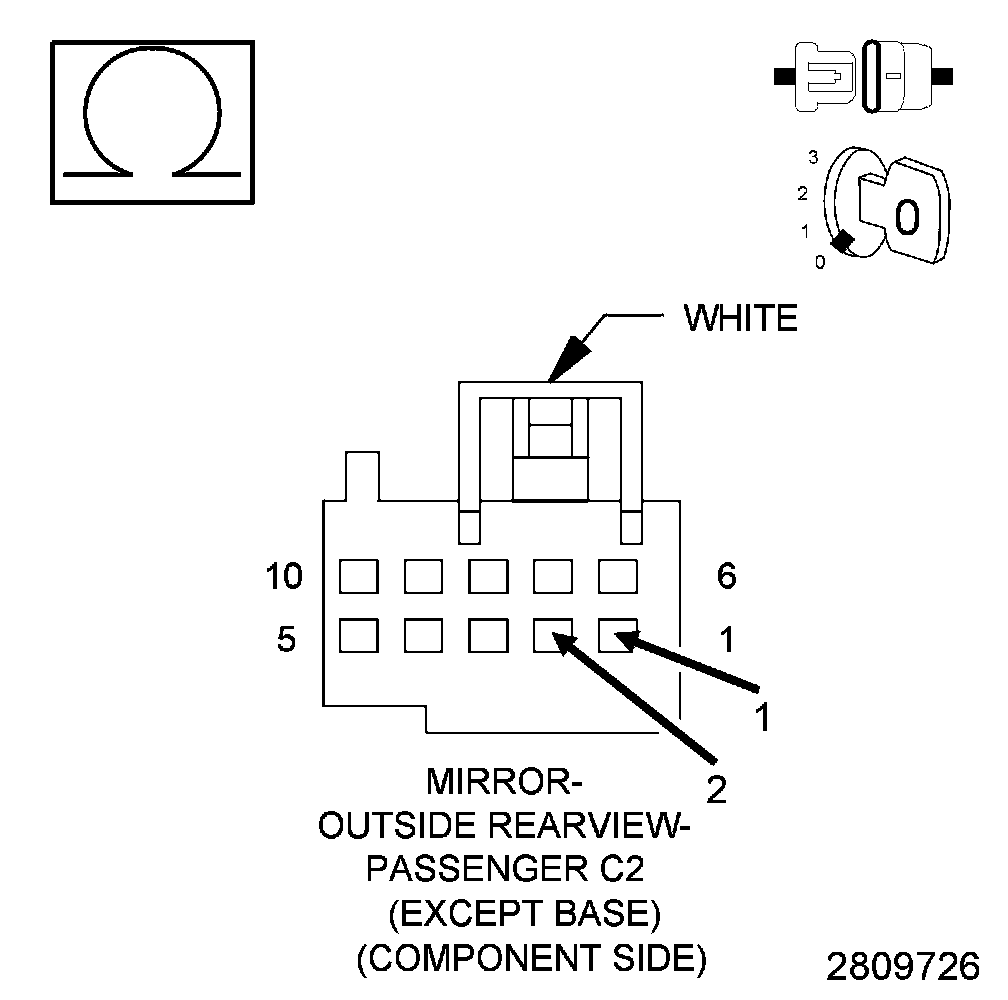

3. Measure the resistance between the (P695) Passenger Mirror Fold Driver circuit and the (P692) Passenger Mirror Unfold Driver circuit at the Passenger Outside Rearview Mirror C2 (Component Side) connector.

Is the resistance below 9.0 Ohms?

Yes

- Go To 4

No

- Replace the Passenger Power Folding Mirror Assembly. Outside Rearview Mirror - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

4. CHECK THE (P695) PASSENGER MIRROR FOLD DRIVER CIRCUIT AND THE (P692) PASSENGER MIRROR UNFOLD DRIVER CIRCUIT FOR A SHORT TO VOLTAGE




1. Turn the ignition on.

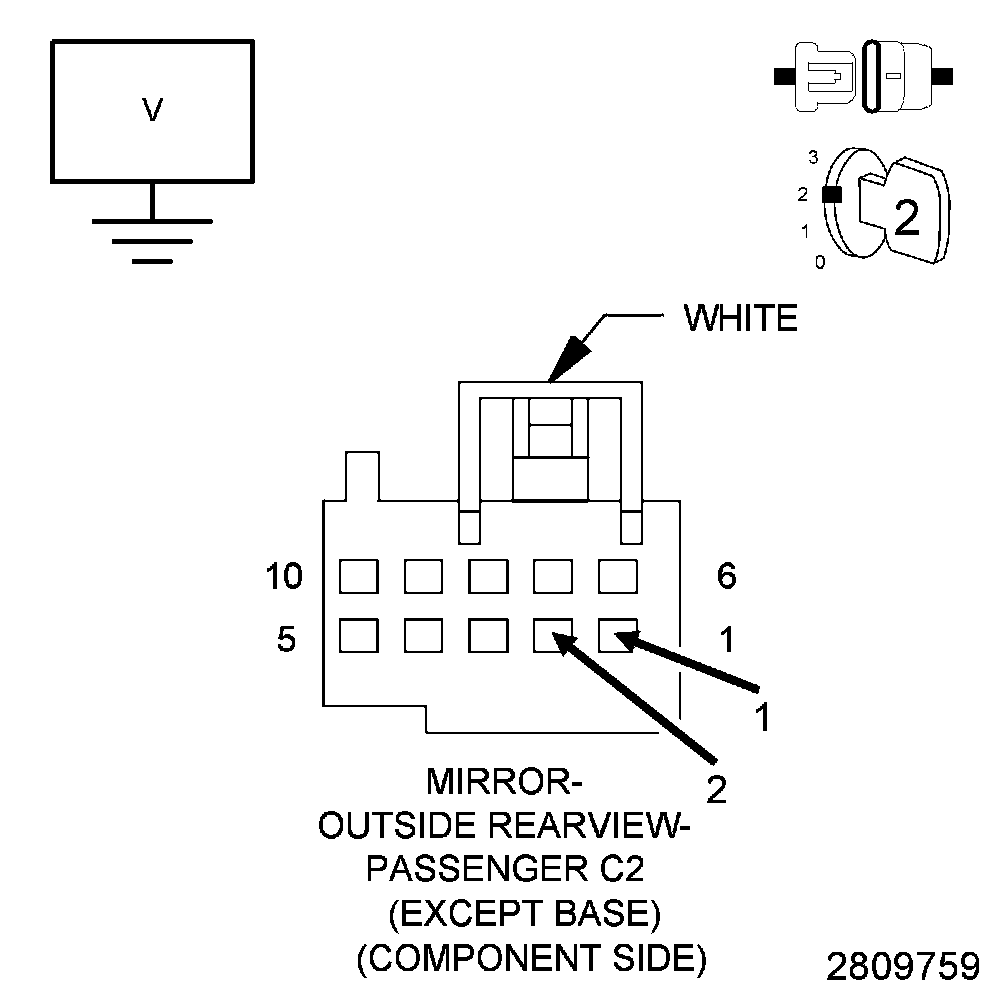

2. Measure the voltage between ground and the (P695) Passenger Mirror Fold Driver circuit in the Passenger Outside Rearview Mirror C2 (Component Side) connector.
3. Measure the voltage between ground and the (P692) Passenger Mirror Unfold Driver circuit in the Passenger Outside Rearview Mirror C2 (Component Side) connector.

Is there any voltage present in either terminal?

Yes

- Replace the Passenger Outside Rearview Folding Mirror. Outside Rearview Mirror - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.

No

- Replace the Passenger Door Module (PDM). Door Module - Removal.
- Perform the BODY VERIFICATION TEST. Body Verification Test.
