Power Steering Fluid Cooler: Description and Operation

DESCRIPTION - GAS ENGINE

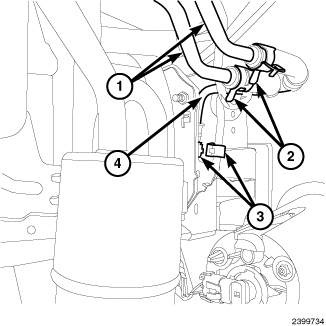

The cooler (4) is placed in series with the power steering fluid return hose (1), between the steering gear fluid outlet port and the fluid return hose leading to the power steering fluid reservoir.

The cooler is not available separately. It is serviced with the power steering fluid return hose.
