Piston Oil Cooler Jet - Removal

REMOVAL





1. Remove engine Engine - Removal and place on a suitable stand.

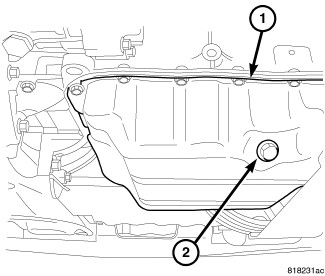

2. Remove oil drain plug (2) and drain oil.
3. Remove oil panEngine Oil Pan - Removal.
4. Remove balance shaft module/oil pumpEngine Oil Pump - Removal.
5. Remove ladder frame.

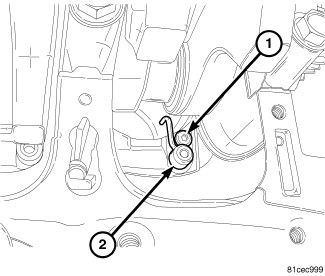

6. Remove oil jet fastener (1).
7. Remove oil jet (2).
