Engine: Application and ID
DESCRIPTION

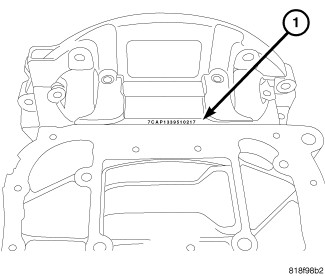

The engine serial number (1) is located between the
oil pan

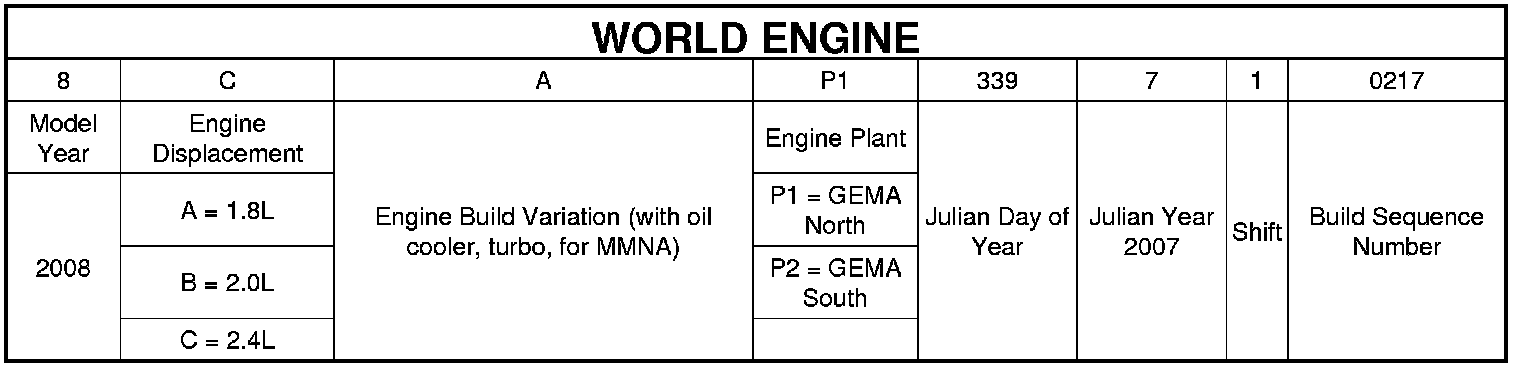

and the bellhousing. The serial number contains engine build date, build information, displacement, and build sequence number
Example: 8CAP1339710217
