Rear

REAR

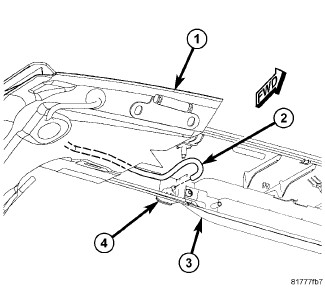

1. Position the rear washer nozzle (4) through the mounting hole from the face of the liftgate spoiler (3).
2. Using hand pressure, press the nozzle firmly and evenly into the mounting hole until the two integral latch features are fully engaged on the back of the spoiler.
3. From the back of the spoiler, reconnect the liftgate washer supply hose (2) to the barbed nipple of the nozzle.
4. Reinstall the spoiler onto the liftgate outer panel (1) Liftgate - Installation.
5. Reconnect the battery negative cable.
