Rear Washer Nozzle - Description

REAR

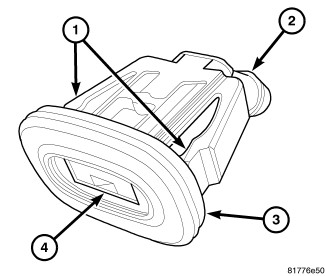

The fluidic rear washer nozzle is constructed of molded plastic. The rear washer nozzle is secured by two integral latch features (1) within a mounting hole to the right of the Center High-Mounted Stop Lamp (CHMSL) in the lower surface of the rear spoiler above the liftgate glass opening on the outer liftgate panel.

The outer surface of the washer nozzle is visible on the lower exterior surface of the spoiler, and a rubber gasket (3) seals the nozzle to the spoiler mounting hole. The nozzle orifice (4) is oriented downward towards the liftgate glass. The washer plumbing fitting (2) is concealed between the spoiler and the liftgate outer panel.

The rear washer nozzle cannot be adjusted or repaired and, if ineffective or damaged, it must be replaced.
