Input Shaft Seal - Installation






INSTALLATION

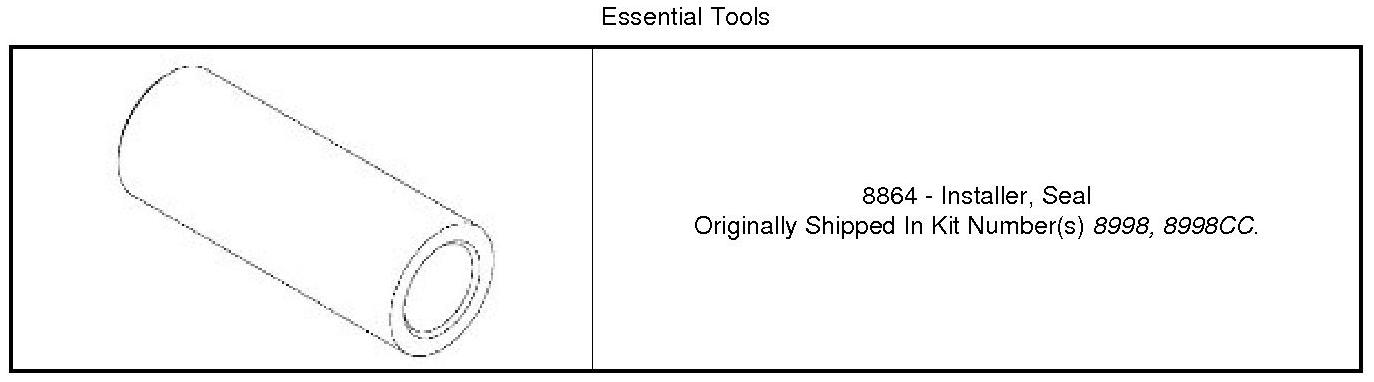

Special Tools:

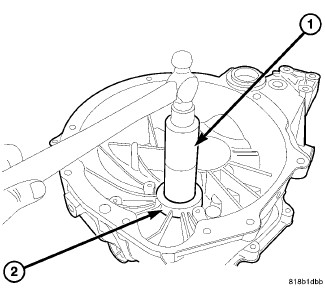

1. Install input shaft seal (2) using installer (1).
2. Install the transaxle T355 Manual Transmission - Installation.
