Axle Drive Shaft Seal - Installation

INSTALLATION

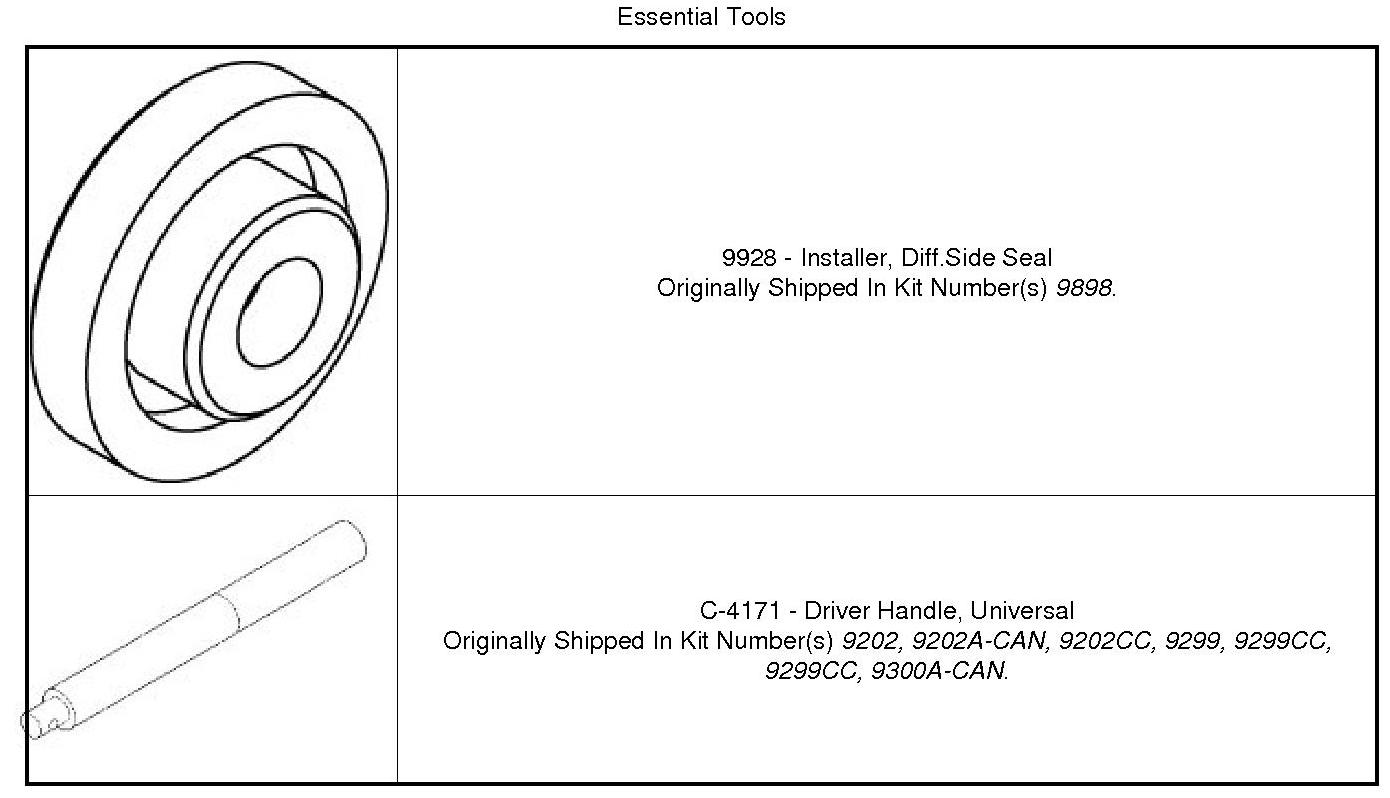

Special Tools:










1. Clean axle shaft seal bore of any excess sealant.
2. Align (bellhousing side) axle shaft seal with axle shaft seal bore.

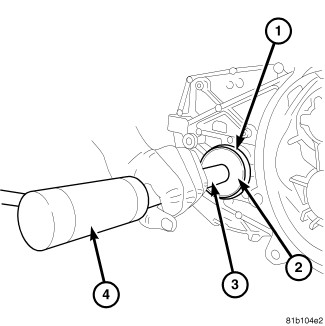

3. Install axle seal on Seal Installer and Handle and insert into axle shaft seal bore.
4. Tap seal into position until seated against transaxle case.




5. Align axle shaft seal with axle shaft seal bore.
6. Install (case side) axle seal on Seal Installer 9934 and Handle and insert into axle shaft seal bore.
7. Tap seal into position until seated against transaxle case.
8. Install axle shaft. Half Shaft - Installation
9. Check transaxle fluid level and adjust as necessary.
