Transmission Shifter - Installation

INSTALLATION

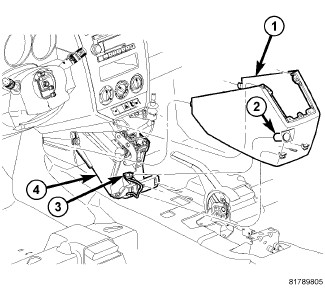

1. Plug the electrical connector in at the shifter.

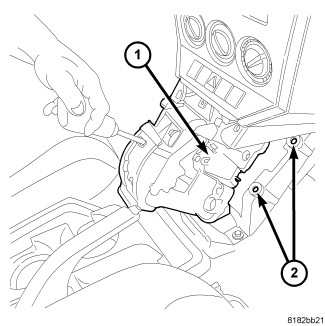

2. Install the shifter in place.
3. Clip the shift cable to the shifter.





4. Install the shifter bolts and tighten to 70 Nm (52 ft. lbs.).

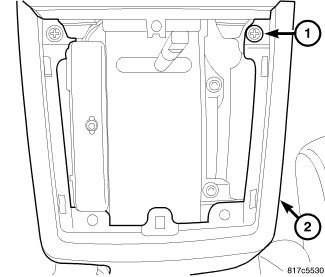

5. Place console housing (1) over shifter lever ensuring console tabs seat properly.





6. Install screws (1).
7. Replace shift bezel and knob.Shifter Bezel - Installation
