Shift Interlock Cable - Installation

INSTALLATION

1. Install the cable between the shifter and the steering column.
2. Clip the shift interlock cable to the shifter.
3. Install the shifter in place.




4. Install the shifter bolts and tighten to 70 Nm (52 ft. lbs.).

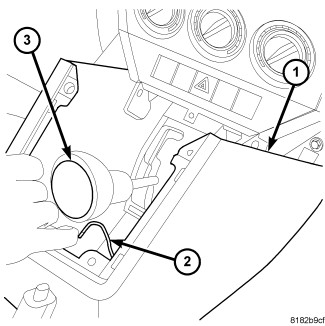

5. Install the console (1).
6. Connect the electrical connector (2) (if equipped).

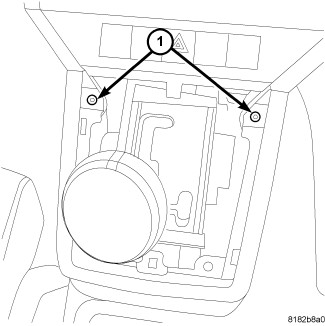

7. Install the screws (1) at the console.

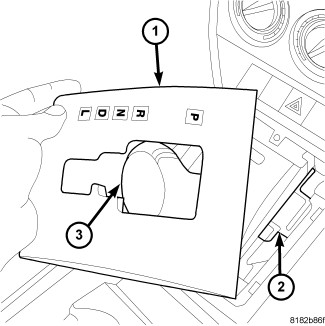

8. Install the shifter bezel (1).





9. With the ignition switch in the ON position, push the interlock cable (2) into the column (1) until it clicks into place.
10. Check operation of the ignition-shift interlock feature.
11. Install the lower shroud.
