Torque Converter Hub Seal - Removal






REMOVAL

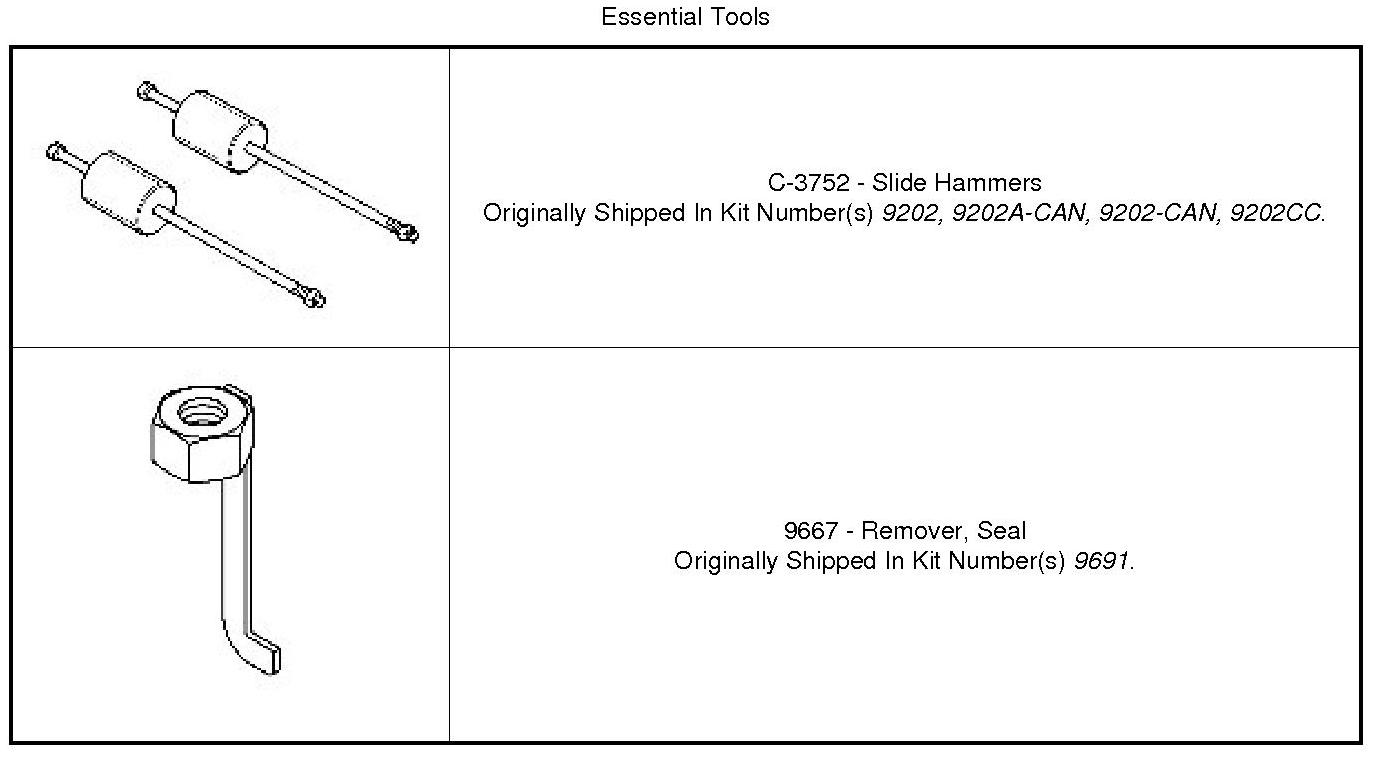

Special Tools:






1. Remove transmission Removal.




2. Remove torque converter.
3. Remove torque converter seal using Slide Hammer and oil Seal Remover.
