Right Axle Drive Shaft Seal - Removal






REMOVAL





1. Remove halfshaft Half Shaft - Removal.

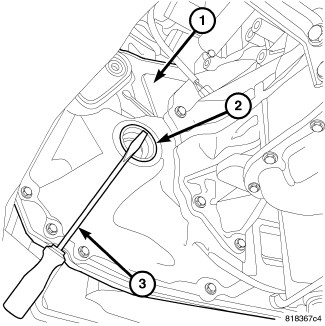

2. Remove the seal (2) from the transaxle using a screwdriver (3).
