Left Axle Drive Shaft Seal - Removal
Left Axle Drive Shaft Seal - Removal
REMOVAL
1.
Remove halfshaft
Half Shaft - Removal
.
2.

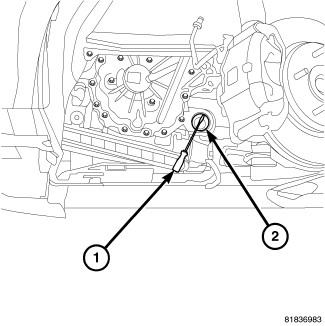

Remove left side differential oil seal.
