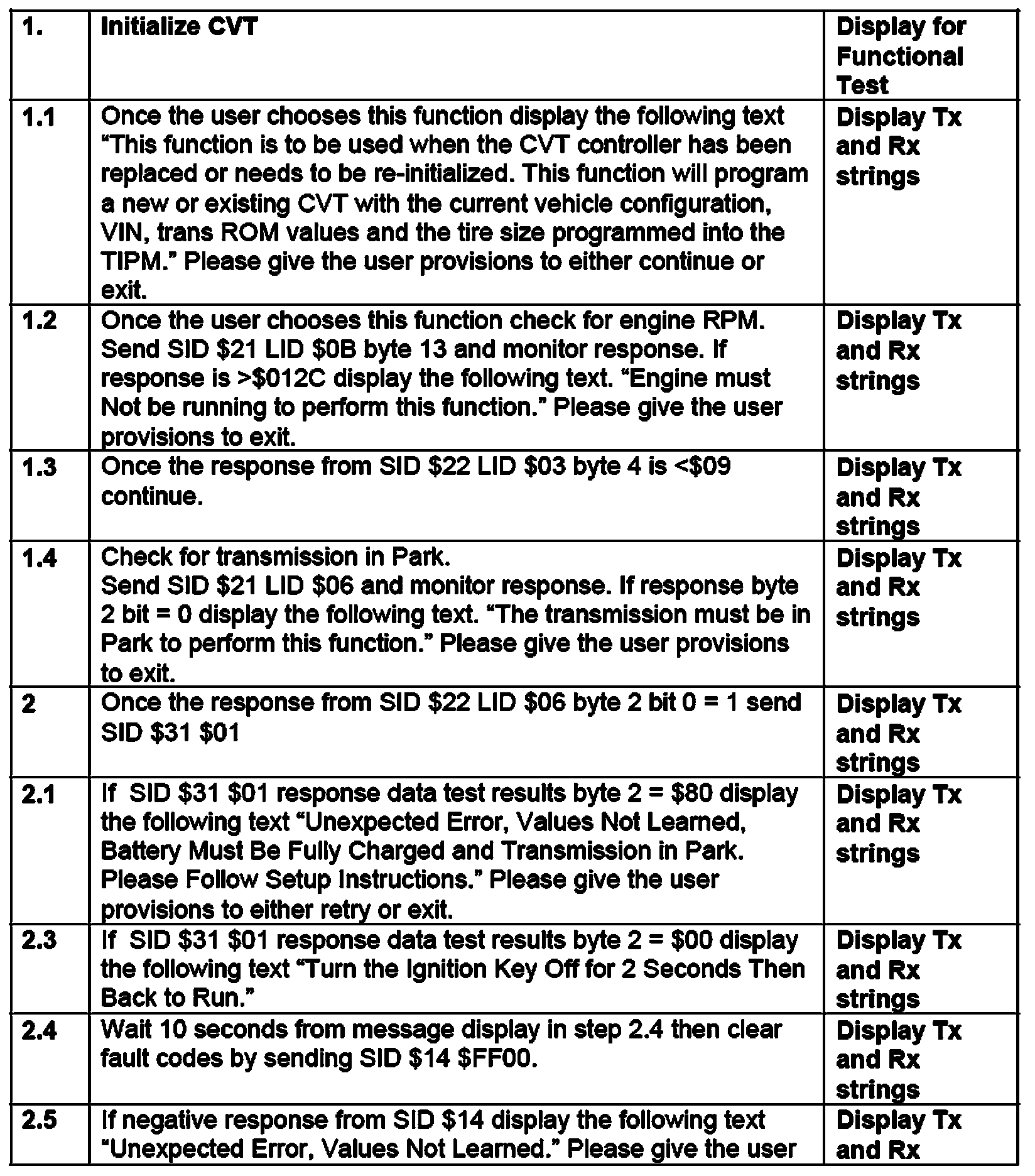

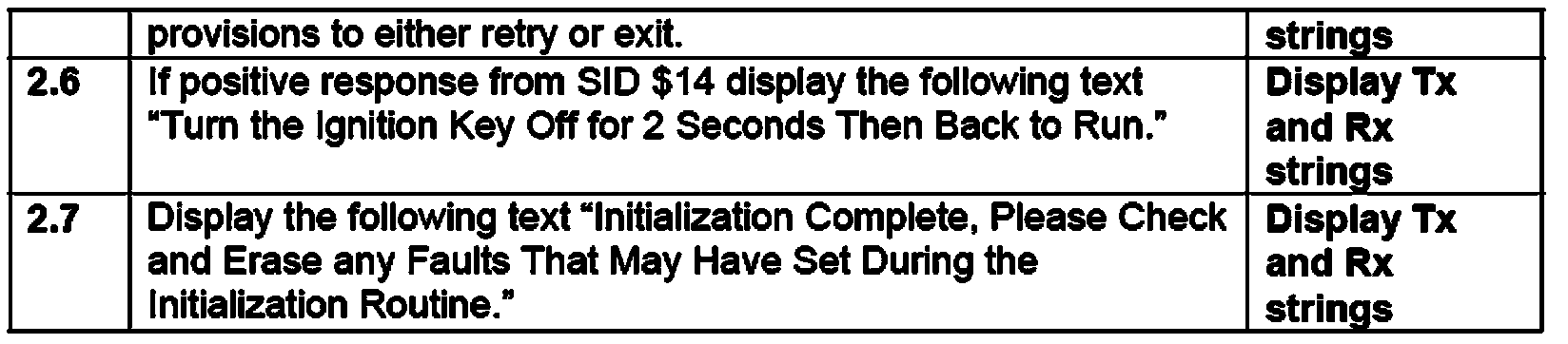

CVT Initialization





CVT Initialization

Overview

This function will enable the learn vehicle configuration along with the tire size programmed into the TIPM.










Functional Requirements
