Clutch Master Cylinder - Description - RHD






DESCRIPTION

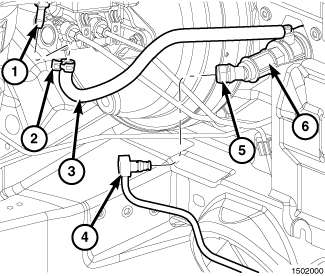

The clutch master cylinder (6) mounts to the clutch pedal and consists of a piston and cylinder housing, an actuating push rod, and an interconnecting hydraulic tube. Fluid is supplied to the clutch master cylinder via the brake master cylinder reservoir.
