Modular Clutch Assembly - Removal

REMOVAL










WARNING: Chrysler LLC does not manufacture any vehicles or replacement parts that contain asbestos. Aftermarket products may or may not contain asbestos. Refer to aftermarket product packaging for product information. Whether the product contains asbestos or not, dust and dirt can accumulate on manual clutch parts during normal use. Follow practices prescribed by appropriate regulations for the handling, processing and disposing of dust and debris.

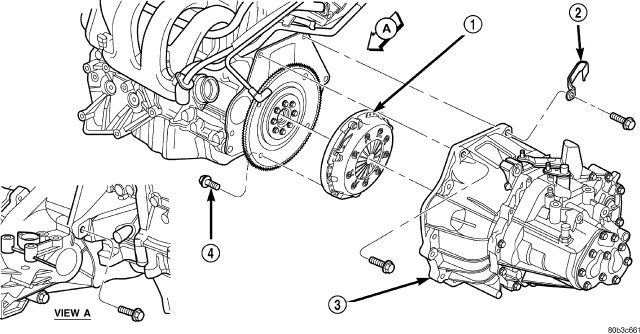

1. Remove transaxle (3) from vehicle T355 Manual Transmission - Removal.





2. Remove modular clutch assembly (1) from transaxle input shaft.
