Rear Suspension Stabilizer Bar - Removal

REMOVAL






NOTE: Before proceeding, Rear Suspension Warnings And Cautions .

1. Raise and support the vehicle. Maintenance

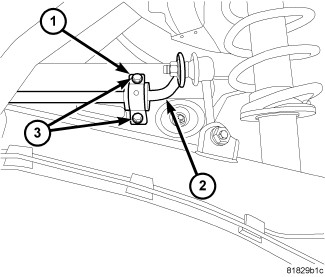

2. On both sides of the vehicle, while holding the stabilizer bar link upper stud stationary, remove the nut (1) securing the link to the stabilizer bar (3).





3. On both sides of the vehicle, remove the screws (3) securing the stabilizer bushing retainers (1) to the crossmember.
4. Remove the two stabilizer bushing retainers.
5. Remove the stabilizer bar (2) from the vehicle.
6. If required, remove the two cushions from the stabilizer bar utilizing the slit cut into the cushions (bushings).
