Lower

INSTALLATION





1. Push the tilt lever (5) downward.
2. Install the lower shroud (2) over the tilt lever and onto the column.
3. Position the column tilt (5) at the full-upward position.
4. Push the tilt lever (5) upward, locking it in place.
5. Install the screw (3) attaching the lower shroud (2) to the steering column (6).
6. Position the column tilt at the full-downward position and lock it in place.
7. Install the upper shroud over the lower shroud, clipping the shrouds to one another.
8. Install the two screws (4) attaching the upper shroud (1) to the lower shroud (2).

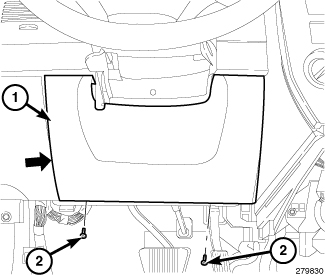

9. Place the steering column opening cover (1) in place and seat the clips fully.
10. Install the two screws (2) and tighten until secure.
