Home >> Dodge >> 2012 >> Caliber L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Wheel Alignment

Wheel Alignment

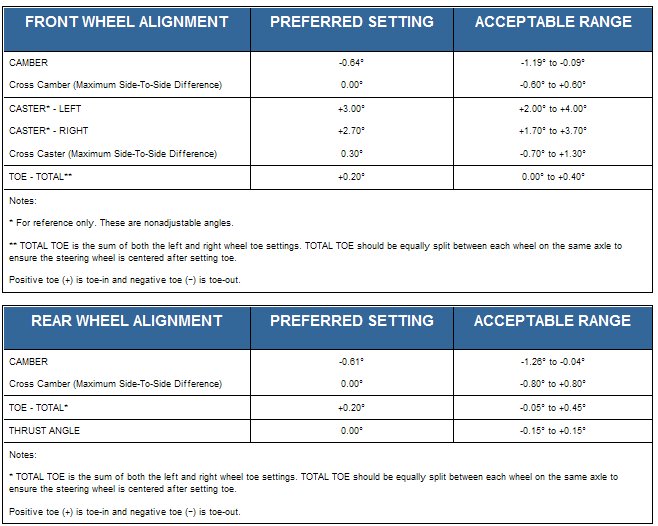

WHEEL ALIGNMENT
All specifications are given in degrees.
All wheel alignments are to be set with the vehicle at curb height.
