Hazard Warning Switch - Description

DESCRIPTION

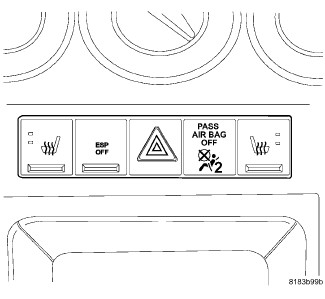

The hazard switch is located in the Accessory Switch Bank Module (ASBM) just below the heater a/c controls, in the instrument panel center stack. This switch is the control for the hazard warning lighting. The only visible component of the switch is the control push button that is located just to the left of the Passenger Airbag Disabled Light (PADL) indicator.





On BUX models, the hazard switch is located to the left of the Headlamp Leveling Switch, in the ASBM. The hazard switch cannot be adjusted or repaired. If the switch is ineffective or damaged, the entire ASBM must be replaced Instrument Cluster Switch Pod - Removal.
