Integrated Accessory Switch Assembly: Description and Operation

DESCRIPTION

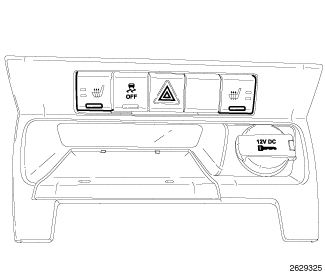

There is an Accessory Switch Bank Module (ASBM) located in the instrument panel center stack just below the heater a/c control. Included in this switch bank are:

- Electronic Stability Control (ESC) / Traction Control Switch (TCS) Off (if equipped) - Electronic Stability Program (ESP) Switch - Description
- Hazard Switch (all models) - Hazard Warning Switch - Description
- Heated Seat Switch (if equipped) - Heated Seat Switch - Description

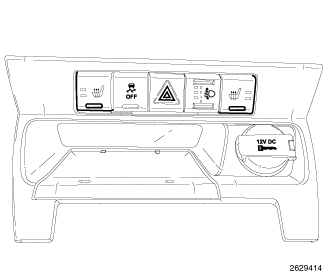

The BUX version of the ASBM will vary from the domestic a bit. Following are the various BUX switches:

- Anti-Skid Control (ASC) (if equipped) - This is the same as the ESC/TCS off switch in the domestic version.
- Hazard Switch (all models)
- Heated Seat Switch (if equipped)
- Headlamp Leveling Switch (if equipped) - Headlamp Leveling Switch - Description - Export

Each individual switch is not available for service replacement. If one or more switches are inoperative, the entire ASBM must be replaced Instrument Cluster Switch Pod - Removal. To diagnose the ASBM switches, use a scan tool and the appropriate diagnostic information.
