Seat Track Position Sensor - Installation

INSTALLATION

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

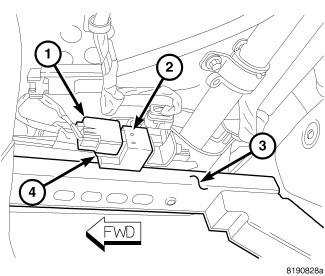

1. Reach under the front seat cushion to reconnect the seat wire harness connector (1) to the seat track position sensor (2) connector receptacle. Be certain that the latch on the connector is fully engaged.
2. Align the open end of the sensor to the slide tab of the sensor bracket located on the outboard side near the rear of the upper outboard seat track (3).
3. Push the sensor firmly onto the bracket until the latch feature (4) snaps into place with an audible click.
4. Do not reconnect the battery negative cable at this time. The Supplemental Restraint System (SRS) Verification Test procedure should be performed following service of any SRS component. Service and Repair.
